3-Blade Metal

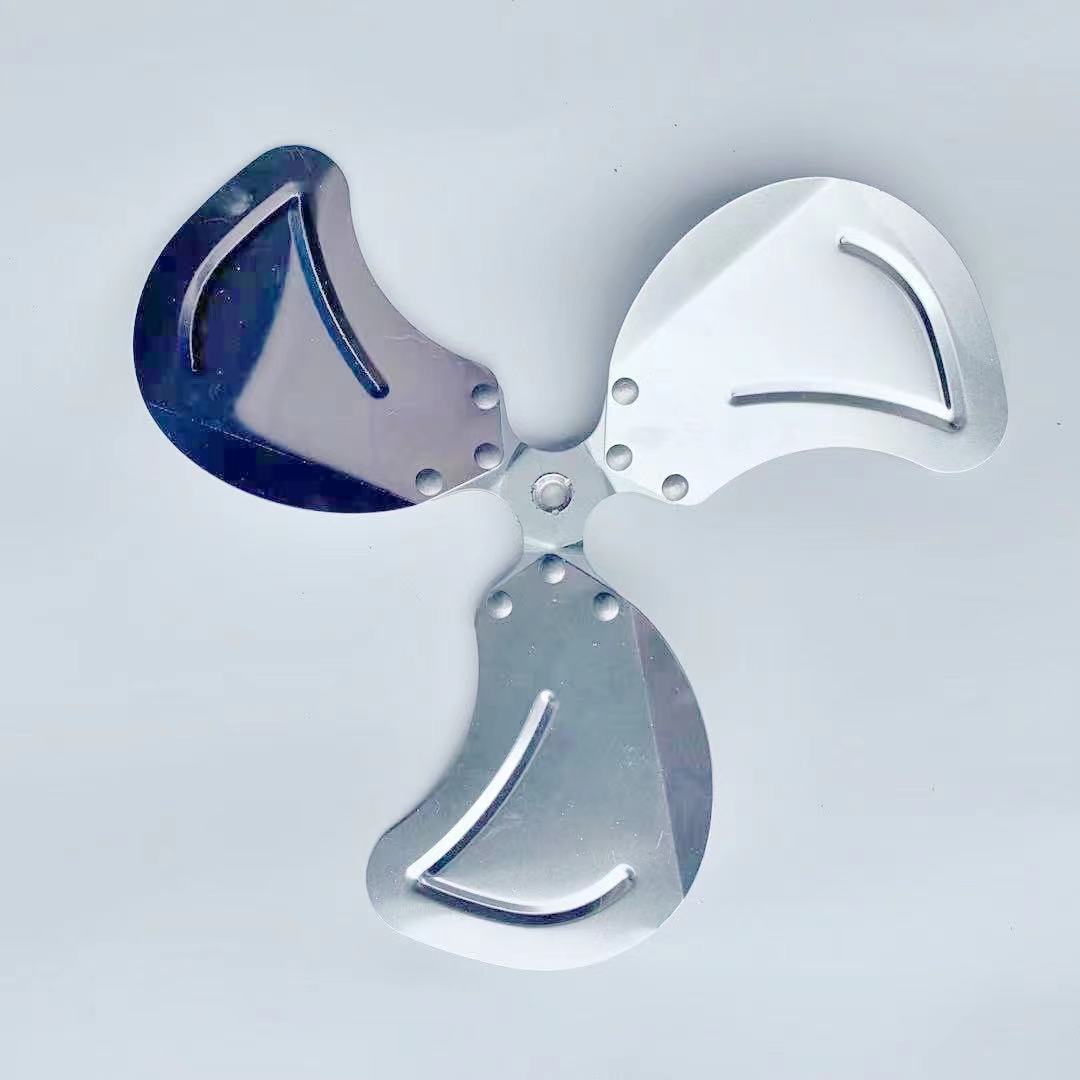

3-Blade Industrial Impeller
Engineered with deep-chord airfoil curvature for massive CFM air delivery in factory stand fans and high-velocity drum circulators.
Request 3-Blade Sample →
Engineered for whisper-quiet airflow, structural rigidity, and zero dynamic vibration. We manufacture aluminum, PP, ABS, and AS fan impellers for stand fans, industrial circulators, wall fans, and commercial blowers with full custom mold fabrication.
Complete impeller configurations developed for diverse residential, commercial, and heavy-duty industrial airflow systems.
Engineered with deep-chord airfoil curvature for massive CFM air delivery in factory stand fans and high-velocity drum circulators.
Request 3-Blade Sample →

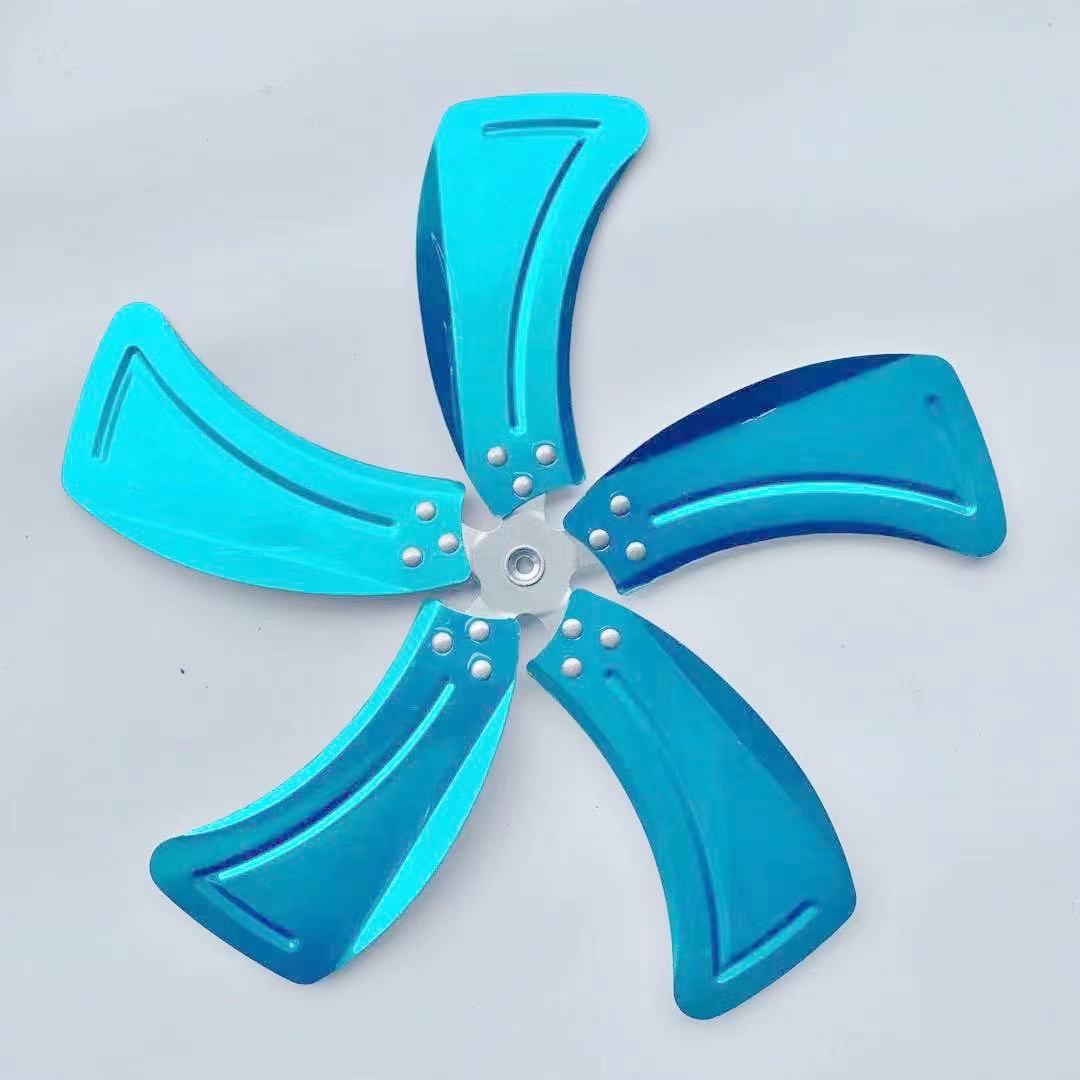

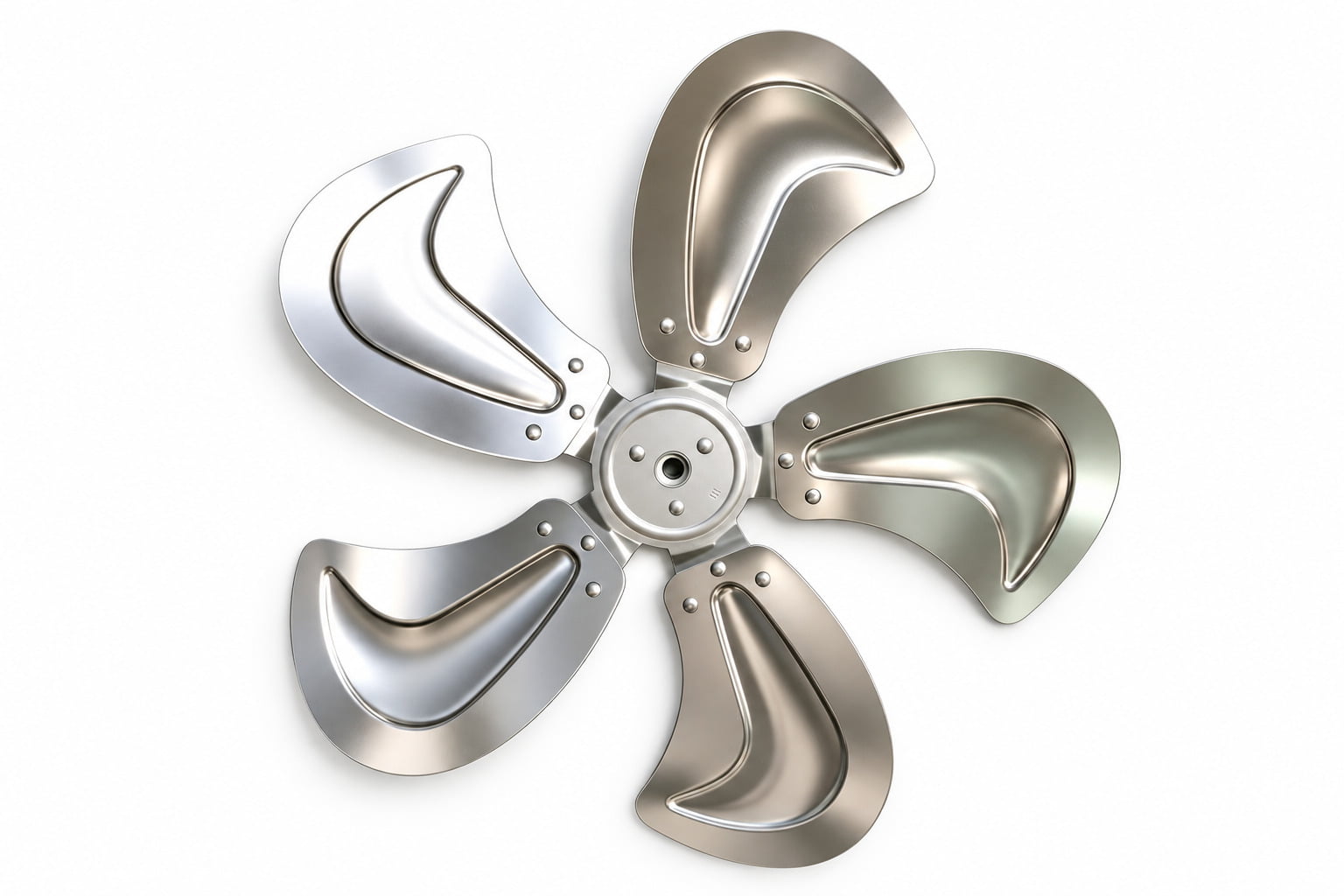

Optimized blade rake angle to reduce turbulent eddy noise, delivering smooth continuous laminar airflow for residential and commercial fans.
Request 5-Blade Sample →
Designed for modern DC inverter fans and dual-blade circulating units that simulate natural gentle wind curves with high energy efficiency.
Request Sample →

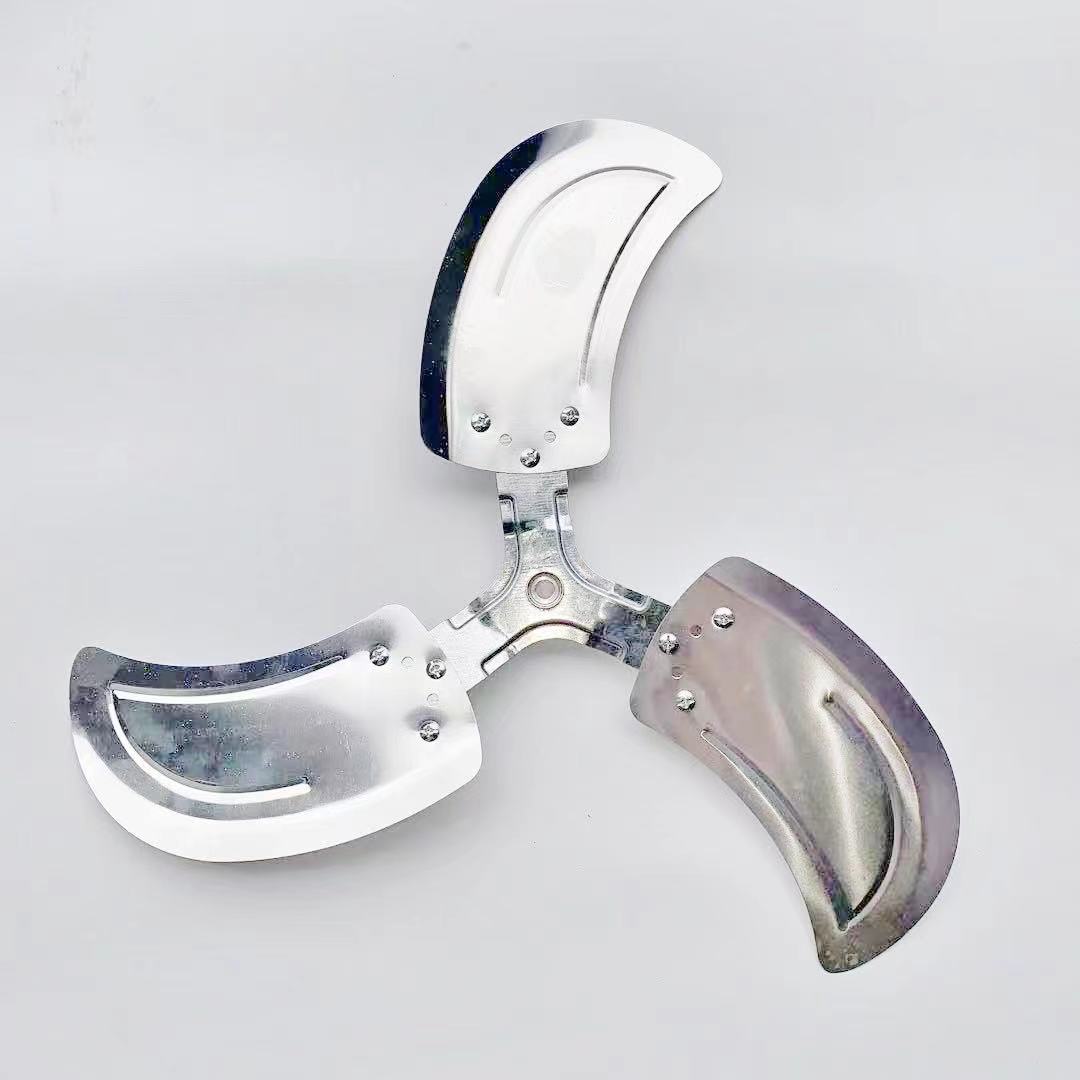

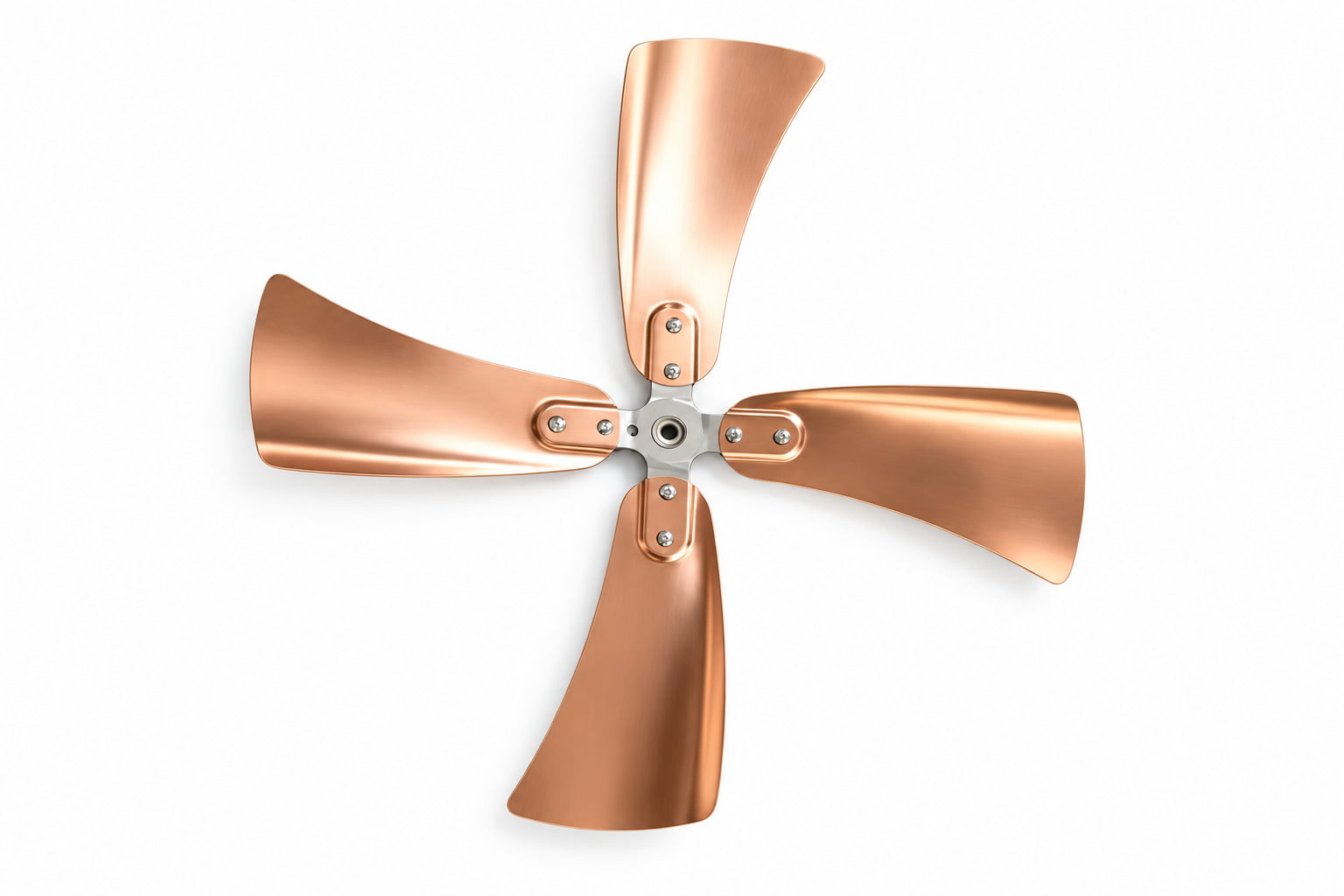

Heavy-gauge stamped sheet steel and stainless blades with reinforced center spiders, built for livestock, greenhouse, and ducted exhaust setups.
Request Industrial Spec →Standard catalog dimensions, shaft bore diameters, blade counts, and raw material grades.
| Model SKU | Impeller Diameter | Blade Count | Shaft Bore (ID) | Primary Material | Hub Attachment | Standard MOQ |
|---|---|---|---|---|---|---|
| YY-BLD-AL18-3 | 18 Inch (450 mm) | 3 Blades | Ø12mm / Ø14mm | Aluminum 5052-H32 | Set-Screw Locking Hub | 500 PCS |
| YY-BLD-AL20-3 | 20 Inch (500 mm) | 3 Blades | Ø14mm / Ø16mm | Heavy Aluminum Sheet | Steel Riveted Spider Hub | 500 PCS |
| YY-BLD-AL26-3 | 26 Inch (650 mm) | 3 Blades | Ø16mm / Ø19mm | Aluminum Alloy + Hard Coat | Cast Iron Center Core | 300 PCS |
| YY-BLD-AL30-3 | 30 Inch (750 mm) | 3 Blades | Ø19mm / Ø24mm | Reinforced AL Airfoil | Keyway / Dual Set-Screws | 200 PCS |
| YY-BLD-PL16-5 | 16 Inch (400 mm) | 5 Blades | Ø8mm D-cut Shaft | Virgin Polypropylene (PP) | Threaded Rear Nut Cap | 1,000 PCS |
| YY-BLD-AS16-5 | 16 Inch (400 mm) | 5 Blades | Ø8mm D-cut Shaft | Clear / Smoke Blue AS Resin | Reinforced Anti-Crack Core | 1,000 PCS |
| YY-BLD-DC14-9 | 14 Inch (350 mm) | 9 Blades | Ø8mm D-cut / Spline | High-Gloss Molded ABS | Push-Lock / Reverse Thread | 1,000 PCS |

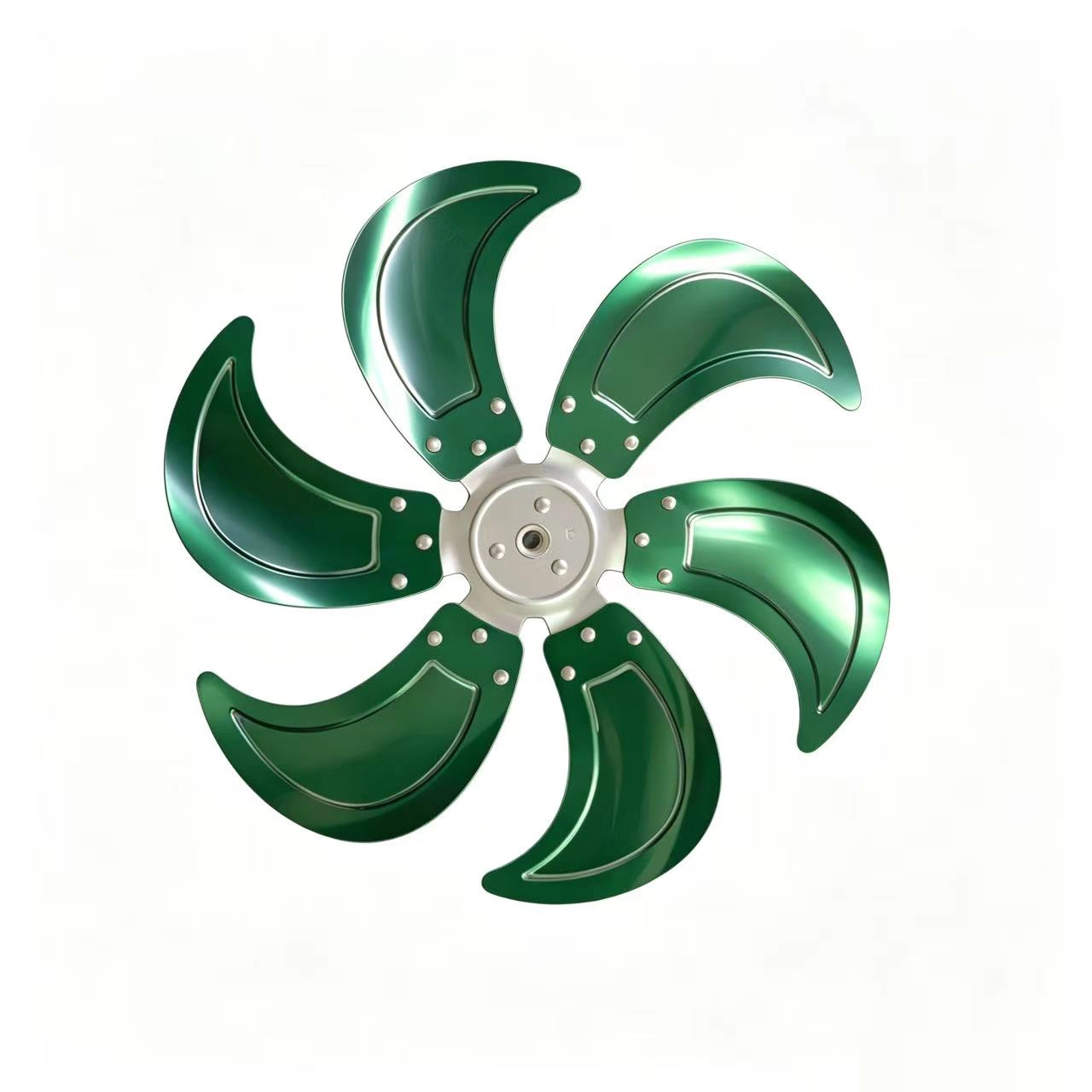

From precision 3D mold tooling to customized corporate branding, we manufacture blades tailored exactly to your appliance line's aerodynamic specifications.

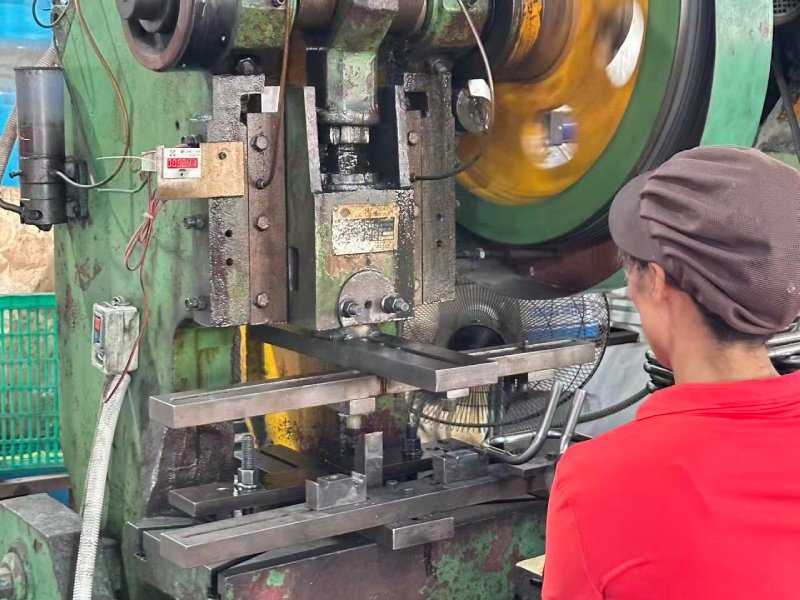

In-house precision mold design and progressive stamping dies. We translate your STEP/IGES 3D files into production tooling within 12–18 business days.
Pantone/RAL color matching for plastic injection impellers (translucent crystal, matte smoke, solid white, industrial orange) or anodized, chrome, and powder-coated metal finishes.
Engineered to lock onto D-shafts, knurled pins, threaded output shafts, or keyway slots. Hub inserts molded in solid brass or zinc alloy to prevent torque slippage.
Direct mold engraving for brand logos on blade hubs, silkscreen printing on blade surfaces, and custom label application with barcode tracking.
Custom blade angle calibration to achieve higher static pressure for industrial ventilation or lower acoustic resonance for residential sleep modes.
Nested multi-pack blister layers, individual anti-scratch polybags, heavy 5-ply corrugated export master cartons, and wooden palletizing for ocean transit.

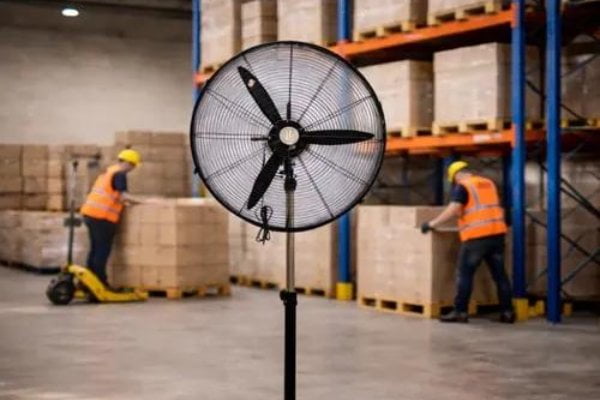

Compatible with 18", 20", 26", and 30" high-power oscillating industrial workshop and warehouse floor fans.

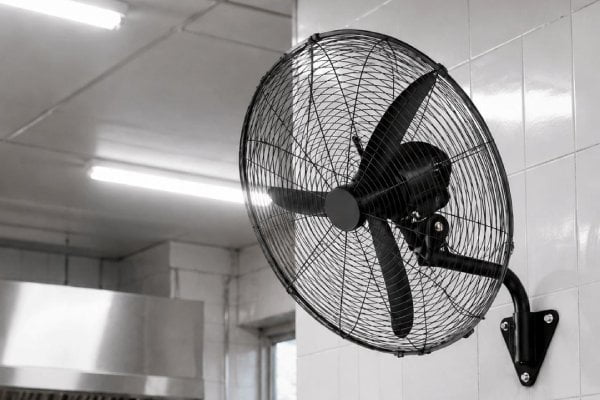

Deep-throw airflow impellers fitted to gymnasiums, restaurant kitchens, dining halls, and outdoor patio wall fans.

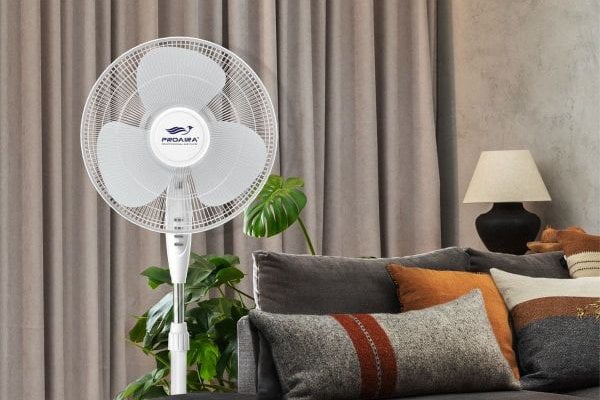

Precision dynamic-balanced 3-blade and 5-blade plastic impellers for 12", 14", 16" home living room and bedroom fans.

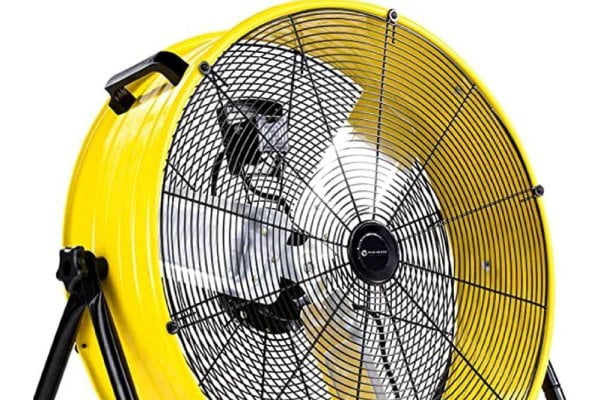

Continuous duty heavy-gauge aluminum blades for portable floor roll-around drum fans and tunnel blowers.

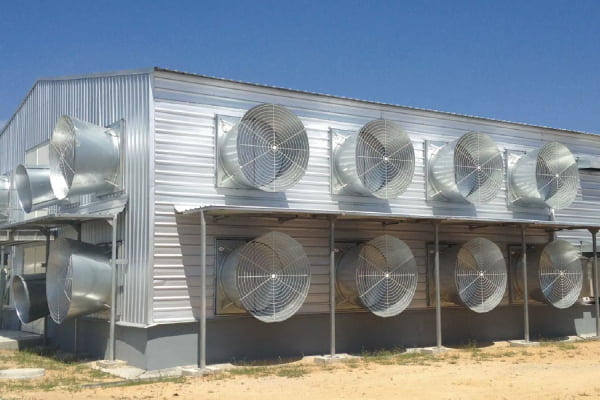

High-volume corrosion-resistant negative pressure exhaust fan blades for agricultural poultry farms and chemical plants.

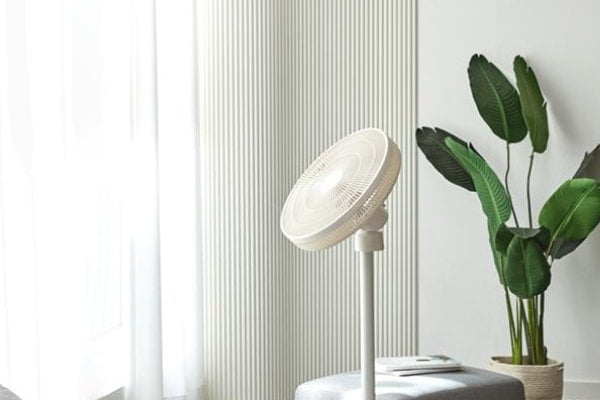

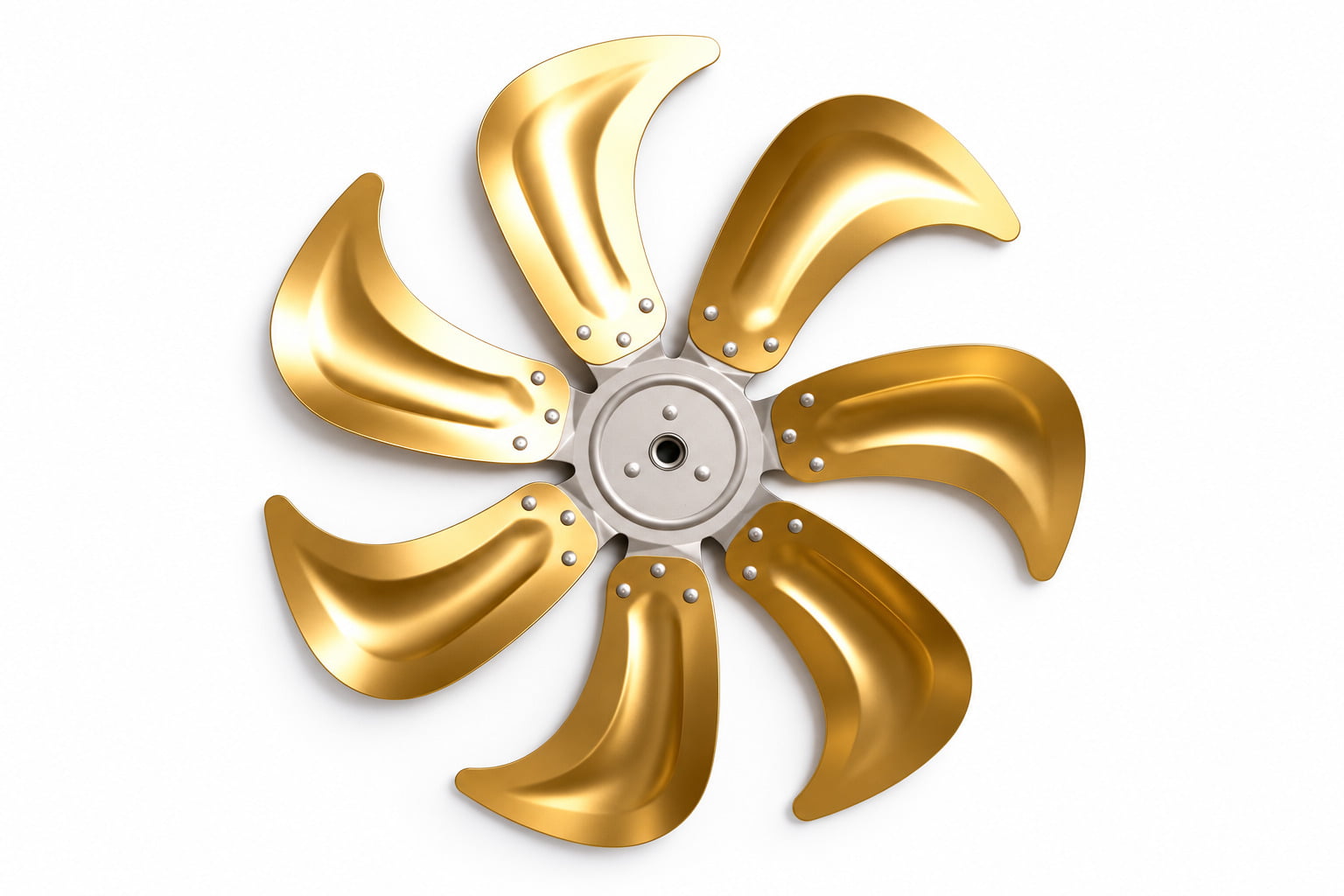

7-blade and 9-blade aerodynamically mapped impellers built for low-wattage brushless BLDC motor platforms.

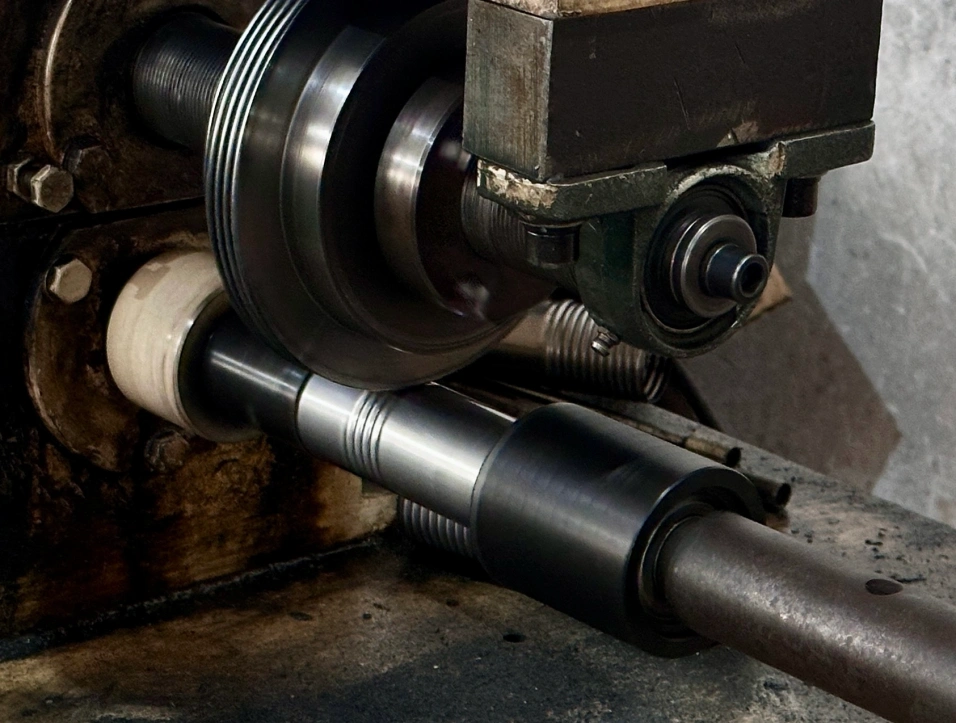

Based in Nanhai District, Foshan, Guangdong—the heart of China's appliance manufacturing hub—Foshan Yayi Hardware Electrical Appliance Processing Co., Ltd. operates a modernized 5,000㎡ facility specializing in precision fan stems, CNC hydroformed pipe bending components, dynamic-balanced fan blades, and complete industrial fan assemblies. Backed by three specialized in-house workshops and strict quality standards, we deliver unmatched cost-efficiency, precision engineering, and fast turnaround for top-tier domestic brands and global OEM/ODM markets across Asia, Europe, and the Americas.
Eliminate trading markups by sourcing directly from our 5,000㎡ automated plant, featuring in-house tooling, flexible MOQs, and custom CAD-to-spec manufacturing.
Minimize vibration, noise, and motor wear with our dynamic blade balancing and CNC concentricity verification, ensuring stable operation and zero-defect batches.
Adhering to our motto—“Dedicated to Production, Responsible to the End”—we leverage prime Foshan logistics for swift delivery to domestic ports and global destinations.
Every production batch undergoes a rigorous 4-stage testing protocol to eliminate blade flutter, dynamic imbalance, and motor strain.
100% piece-by-piece testing on high-speed dual-plane dynamic balancing machines. Verified to ISO 1940 / ISO G2.5 balance grade.
Coordinate Measuring Machine (CMM) and optical profile projectors measure blade attack angle, root radius, and center bore concentricity.
Spin-tested at 150% rated RPM in an enclosed containment chamber for 30 minutes to verify structural integrity under extreme centrifugal load.
Charpy impact tests and free-drop evaluations on plastic impellers to ensure zero brittle cracking during logistics transport and assembly.
Feedback from fan distributors, assembly factories, and appliance brands sourcing metal and plastic fan blades for residential, commercial, and industrial fan applications.
“We purchase several sizes of replacement fan blades for pedestal, wall-mounted, and industrial fans. The biggest improvement has been consistency between batches. Blade diameter, hub size, mounting holes, and blade pitch remain stable, so our distributors receive parts that fit the intended fan models without additional adjustment.”
Fan Parts Distributor
“Blade balance used to be one of the main causes of vibration on our pedestal fan assembly line. After switching to Yayi fan blades, the blade weight, pitch angle, hub fit, and mounting dimensions became much more consistent. This reduced balancing adjustments during assembly and helped us maintain smoother operation at higher fan speeds.”
Electric Fan Manufacturer
“For our new fan platform, airflow and noise performance depended heavily on the blade geometry. Yayi helped us adjust the blade pitch, curvature, hub structure, and material selection during sampling. The final molded fan blade delivered smoother airflow, lower vibration, and consistent appearance across mass-production batches.”
Home Appliance Brand
Key commercial details covering MOQs, sample lead times, custom mold tooling, and international export packing.
For standard catalog blades (such as 18"–30" aluminum 3-blade or standard 16" 5-blade plastic), MOQ is 300–500 PCS. For custom colors or custom shaft diameters with existing molds, MOQ is 1,000 PCS. New custom tooling requires an initial production batch of 3,000 PCS (negotiable for trial orders).
Yes! We provide free catalog samples (1-2 pieces) for motor fitment, dynamic balance checking, and wind tunnel performance verification. The customer only covers international express courier freight (DHL/FedEx/UPS). Samples are dispatched within 24–48 hours.
Custom injection molds or progressive stamping dies typically take 12 to 18 business days from final 3D CAD drawing approval to first article inspection (FAI) sample delivery. Mold tooling fees are 100% refundable once annual order volumes reach agreed threshold quantities.
Standard order lead time is 7 to 12 working days for catalog fan blades. For peak summer production seasons or large container loads (20GP / 40HQ), lead times are typically 15 to 20 days. Urgent emergency air-freight batches can be fast-tracked upon request.

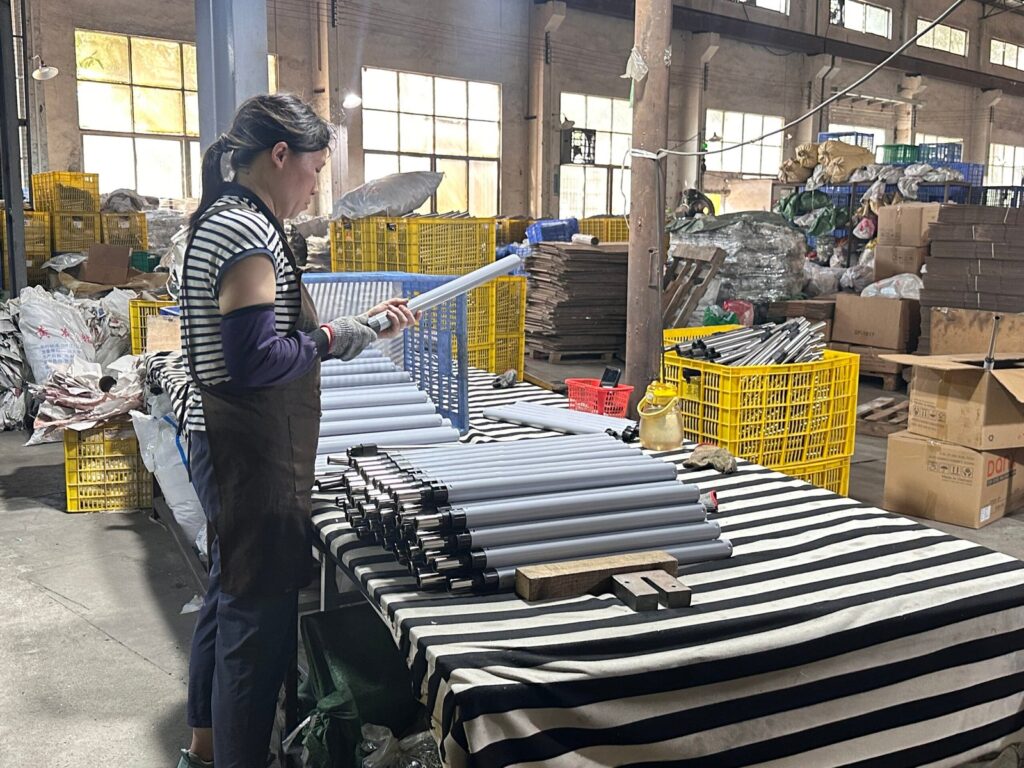

Aluminum blades are stacked with protective EPE foam separation pads and encased in reinforced 5-ply export master cartons with inner corner protectors. Plastic blades are packaged in custom blister nests to maintain blade pitch curvature and prevent pressure warping during long ocean voyages.

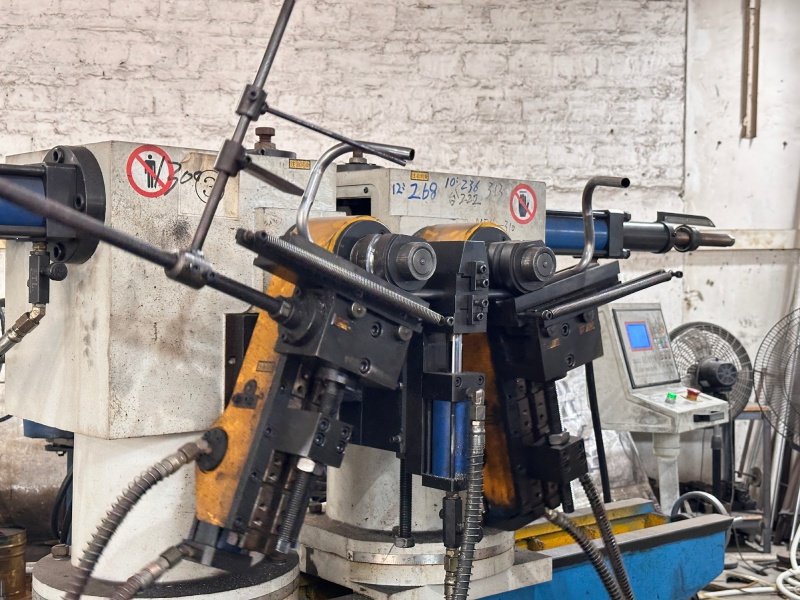

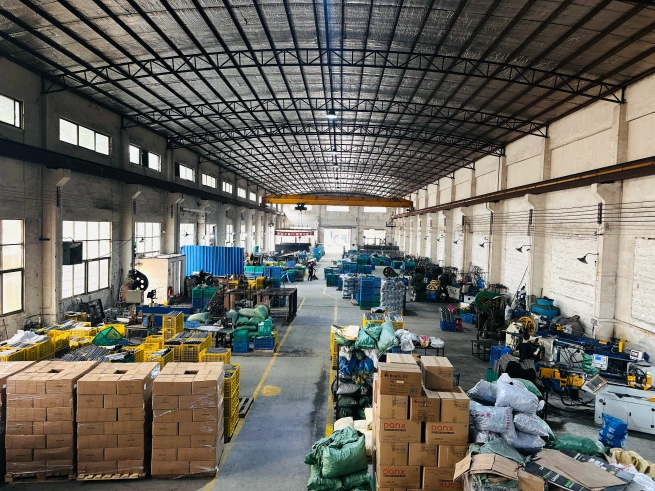

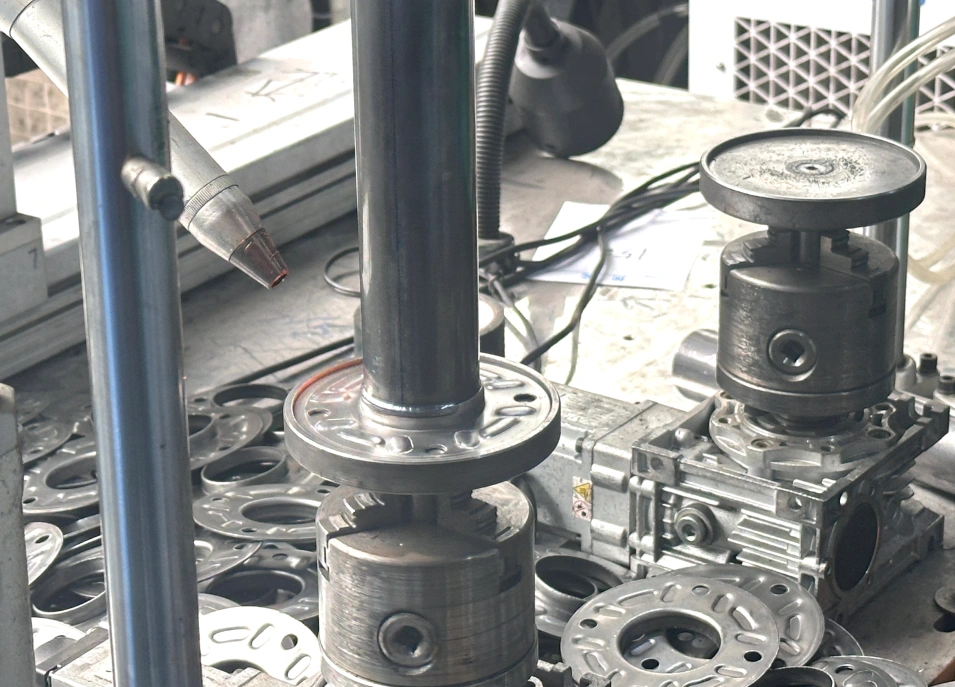

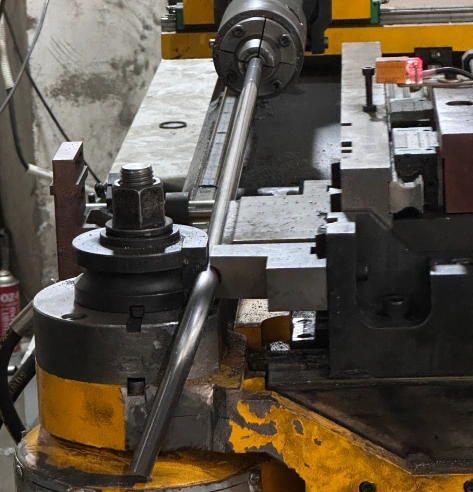

Yes, our 5,000㎡ plant includes all 3 core workshops: Fan Stem CNC Processing, Pipe Bending Processing, and Blade Processing, as well as complete assembly lines for finished commercial & industrial floor fans under your own brand.
Partner directly with our 5,000㎡ precision manufacturing facility in Foshan. Send your drawings, target dimensions, or component requirements for a swift feasibility review and transparent quote.
Direct source pricing from our own workshop with zero middleman markups, ensuring maximum margin and high cost-effectiveness for your procurement.
Tailored specifications for blade diameters, aerodynamic pitch angles, shaft bores, surface coatings, and bespoke hardware molds.
Streamlined production lines and robust raw material inventories ensure sample dispatches in 48 hours and batch deliveries in 7 to 15 days.
Fill out your project details below. Our technical sales engineers will respond with detailed pricing and parameters within 24 hours.
